Project location: Xitun Dist., Taichung

Contract value: $863,600,000 TWD

Final payment amount: $942,401,644 TWD

Approved duration: 1,149 days

Commencement date: 2017-07-10

Completion date: 2020-08-24

Proprietor: Construction Burea of Taichung City Government

Design and Supervision: Do&Find Engineering Consultants Co., Ltd.

Main project content：

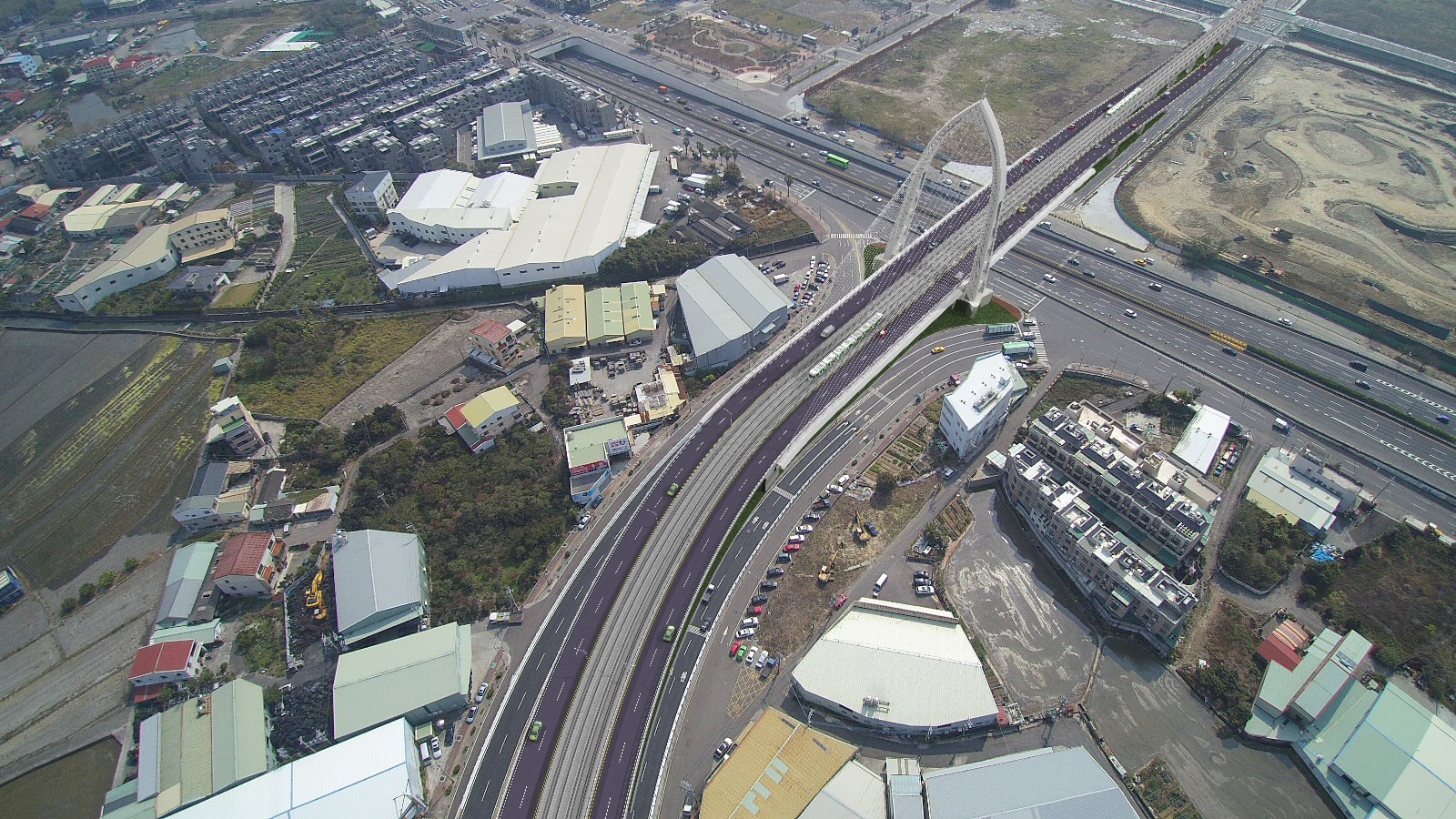

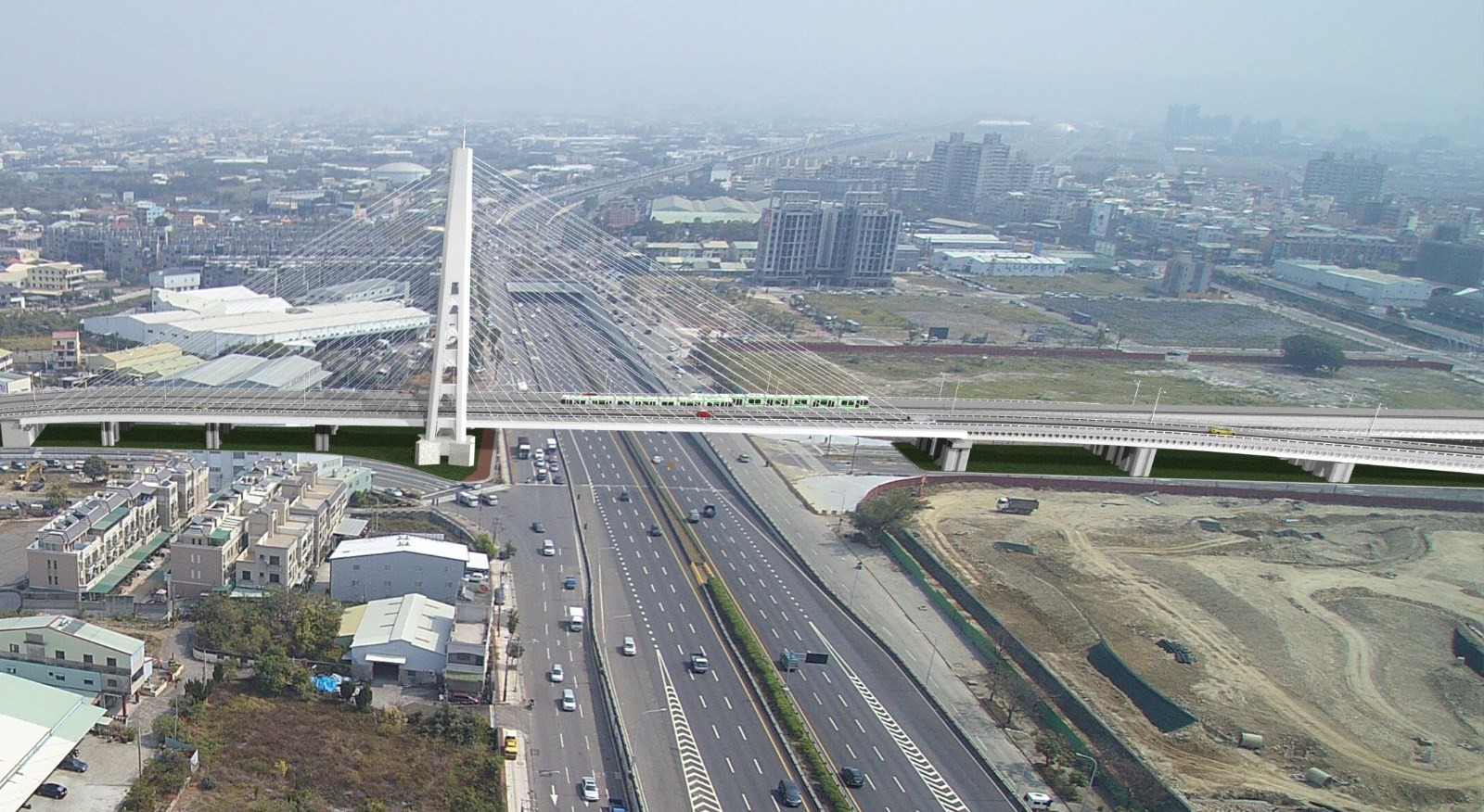

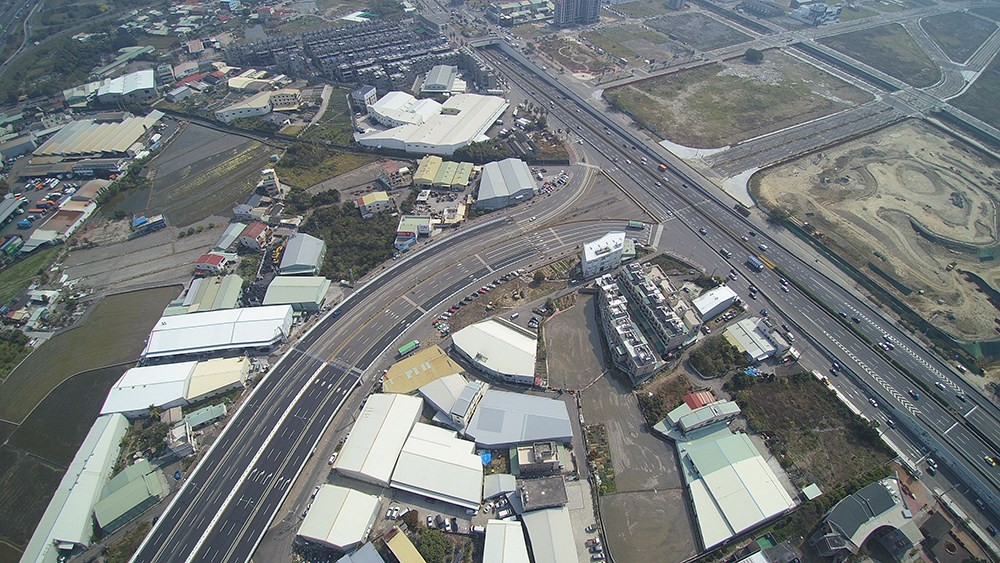

This project adopts a high-rise bridges which spans provincial highway no.74. The total road length is 552 meters. The width of the road is 60 meters in Zhongke road. After the bridge spans 80 meters wide, it enters the Shuinan Business Park 40M. -11 planned roads, of which about 227 meters of road works and drainage works, the total length of bridge is 325 meters. The first unit is steel diagonal bridge, the second unit is steel box type beam bridge, including lightning protection equipment, bridge Surface drainage, abutment and pier construction excavation retaining facilities, traffic markings, signs and signs, road lighting, bridge landscape lighting, etc.

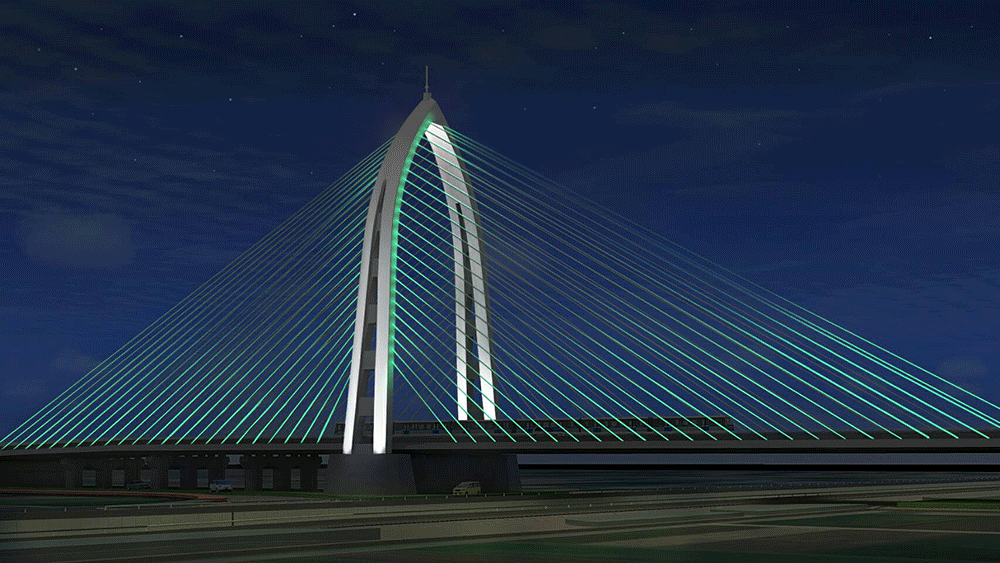

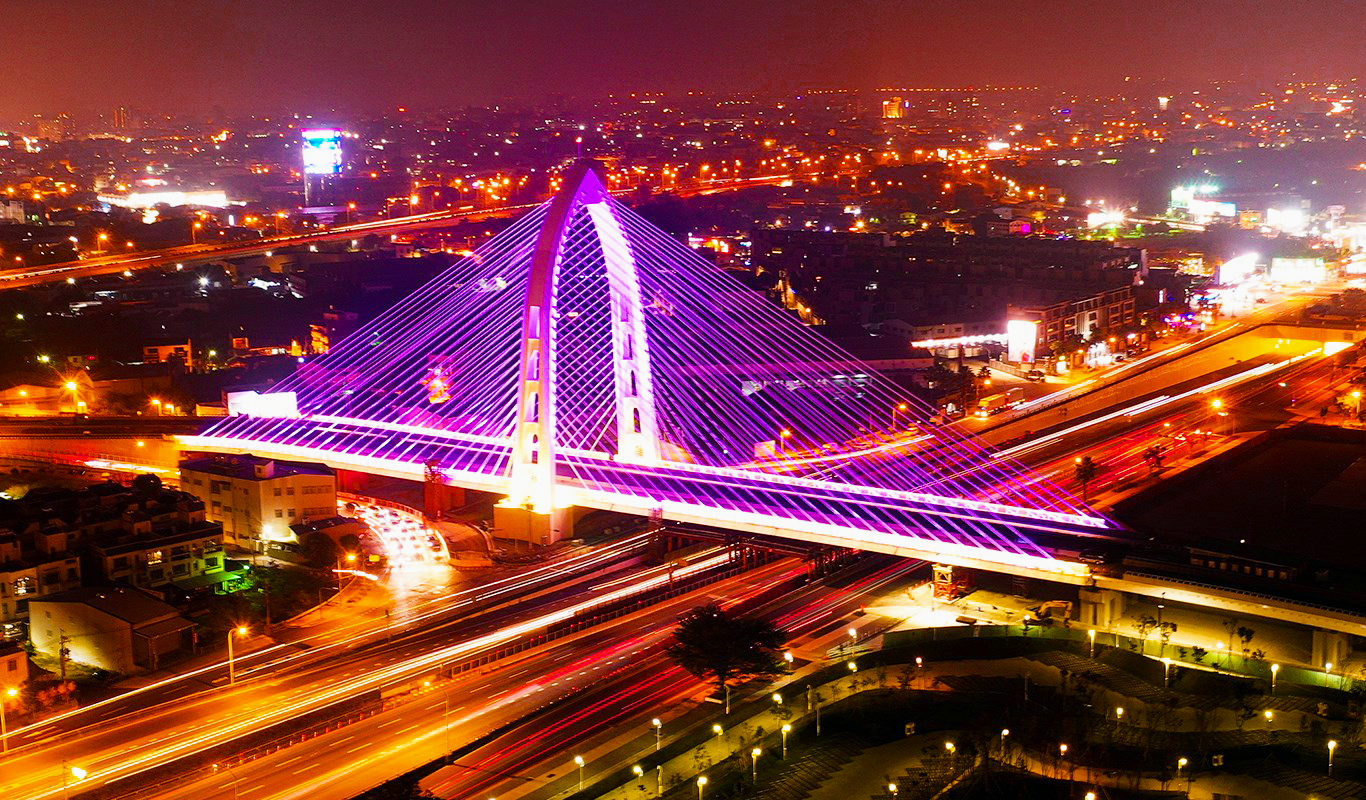

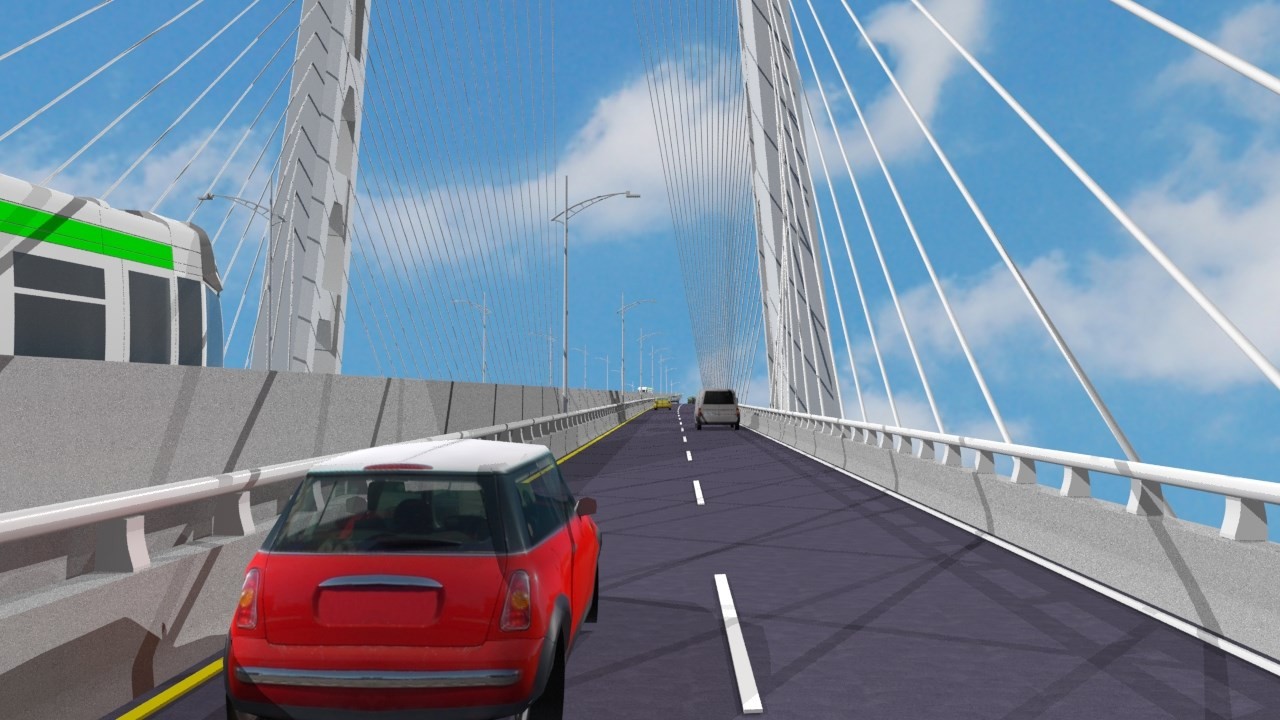

This project is the hub of Shuinan Business Park and Zhongke Park. In order to highlight the importance of location, the bridge adopts cable-stayed bridge design. The main tower is A-shaped and adopts minimalist style design, with bridge LED lighting and night LED. Once the project is completed, it will become an important landmark and will also be another highlight of night view in Taichung City.

This project was awarded the Golden Safety Award of Honorable Mention in the 13th, which is 2019. ▼

This project was awarded the Public Construction Golden Quality Award of High Distinction in the 19th, which is 2019. ▼
