Earthquake Prevention Reinforcement Project M41

  • Date:2017-10-13 09:43:26
  • Owner:Freeway Bureau, MOTC
  • Scale:$ 1,096,450,000 TWD
  • Views:818
Project location: Fengyuan Dist., Taichung City
Contract price:1,096,450,000 TWD
Contract period: 970days
Start date:December 6, 2017
Estimate completion date:August 1, 2020
Employer:Freeway Bureau, MOTC
Design: CECI Engineering Consultants, Inc., Taiwan
Supervision:CECI Engineering Consultants, Inc., Taiwan
Construction:Earth Power Construction Co., Ltd.
Main project content:

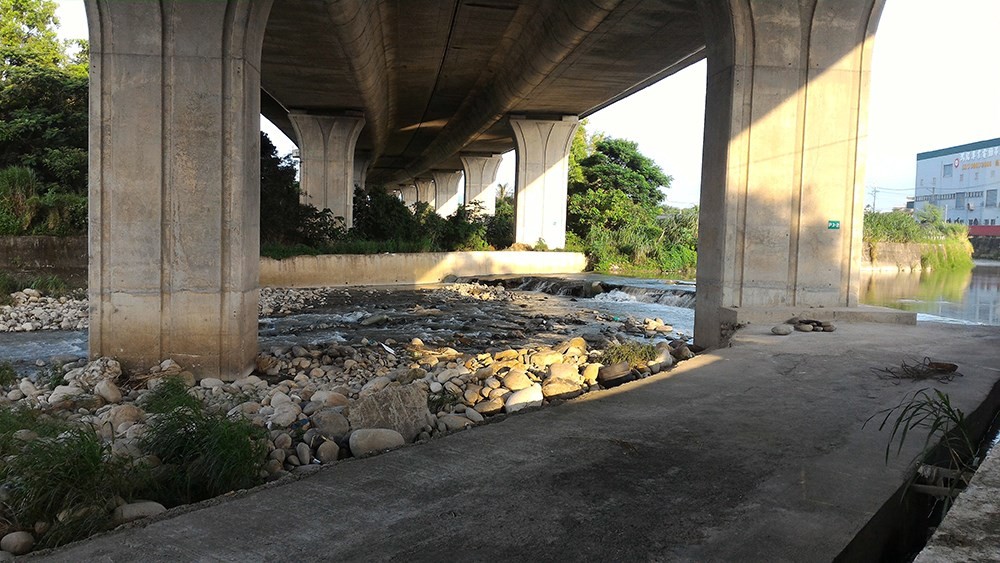

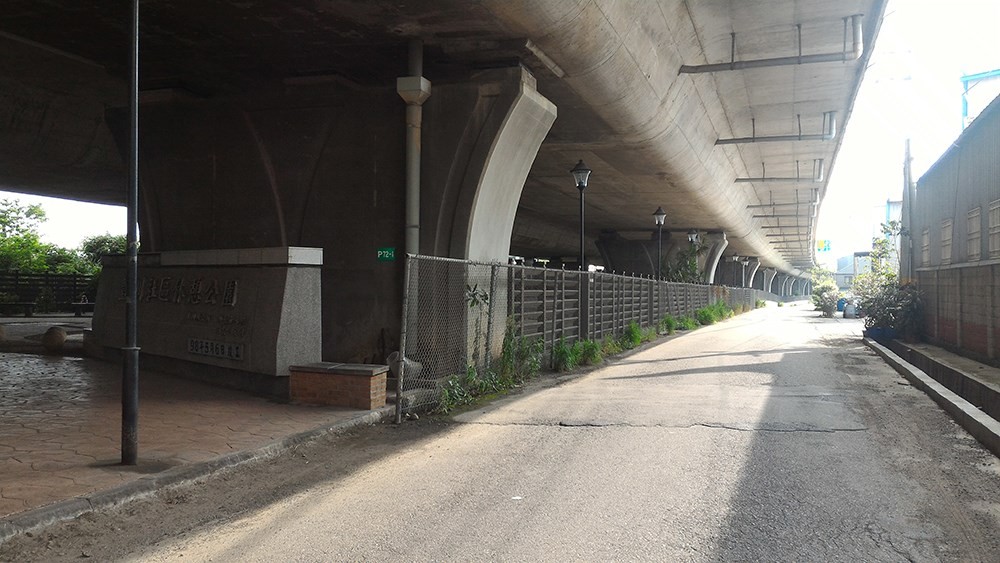

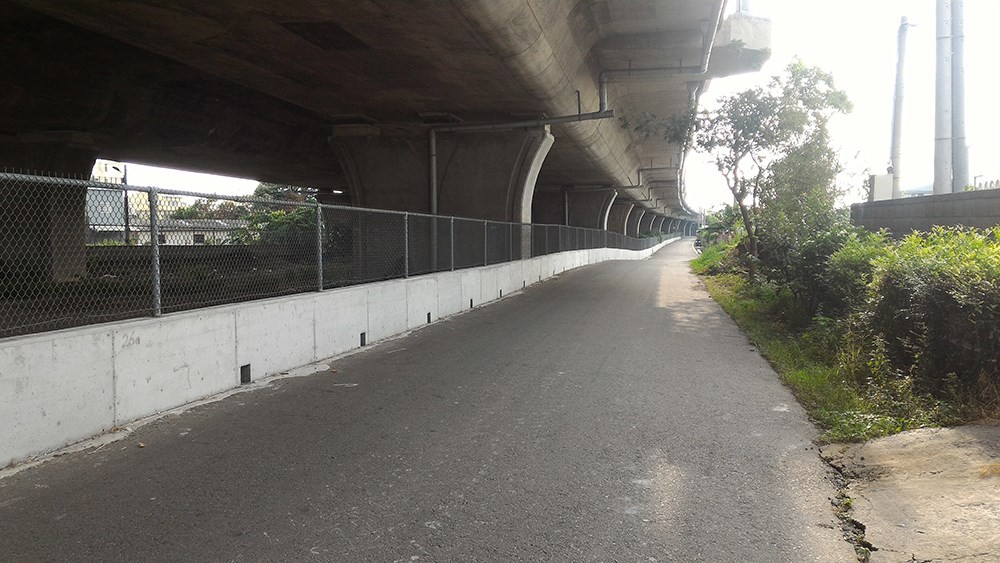

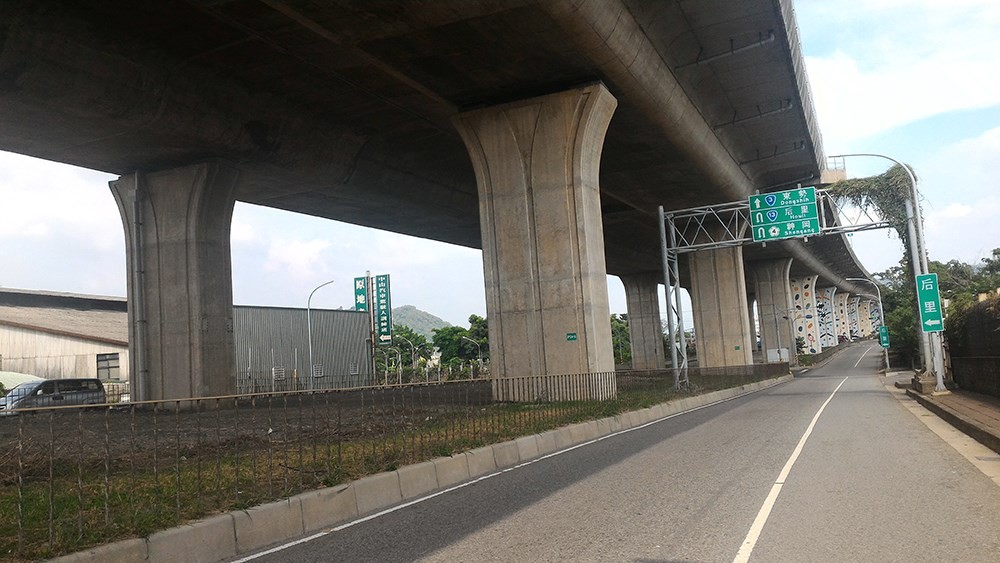

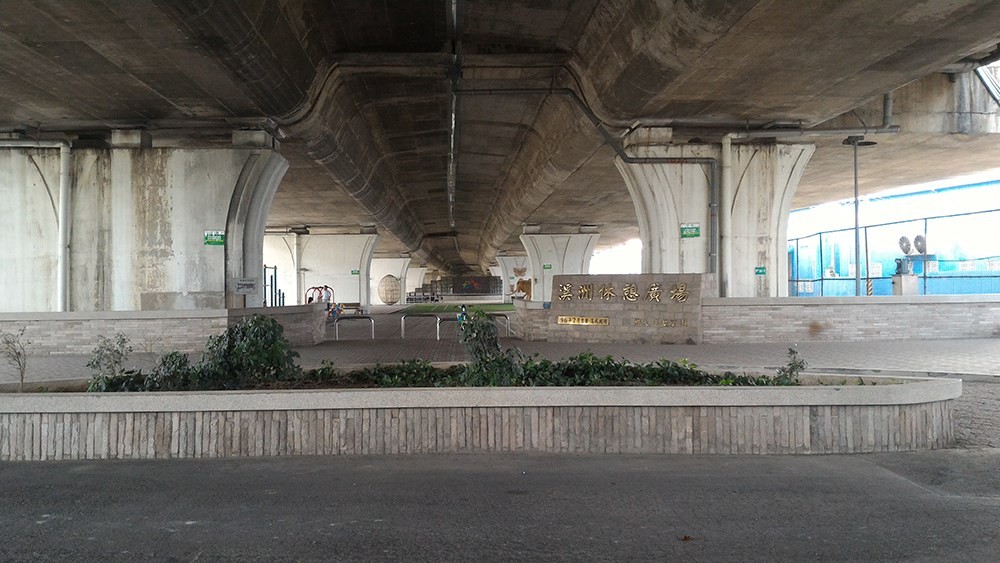

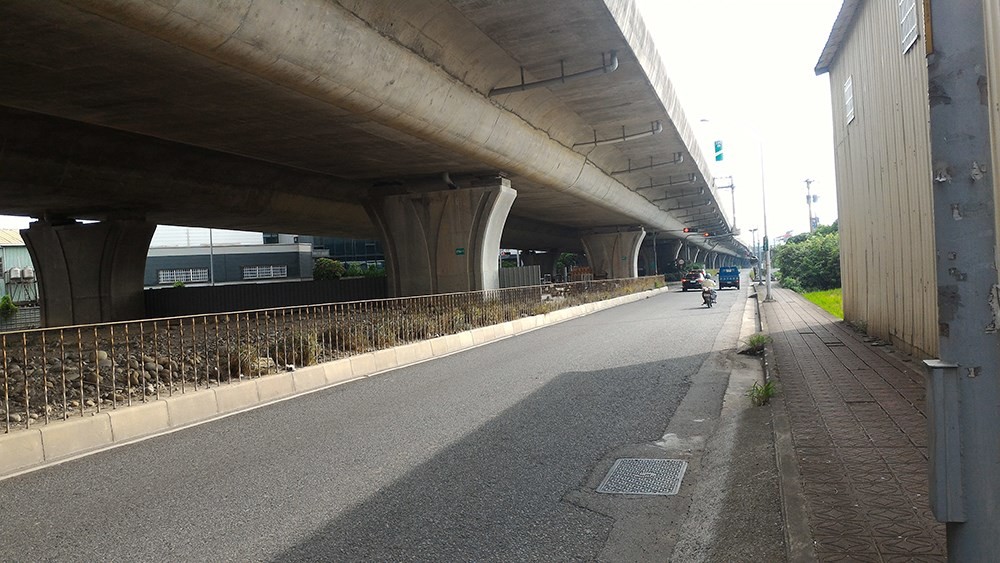

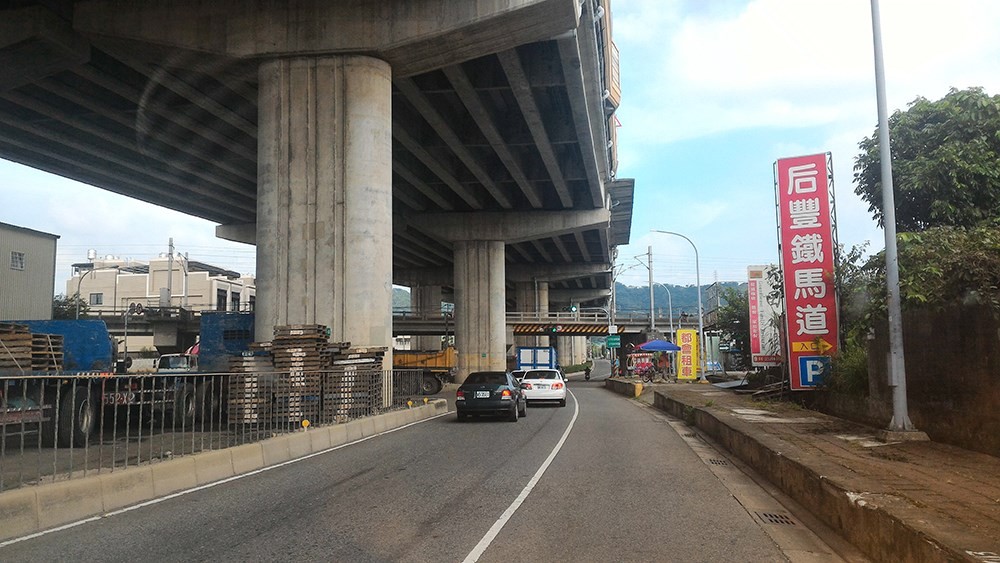

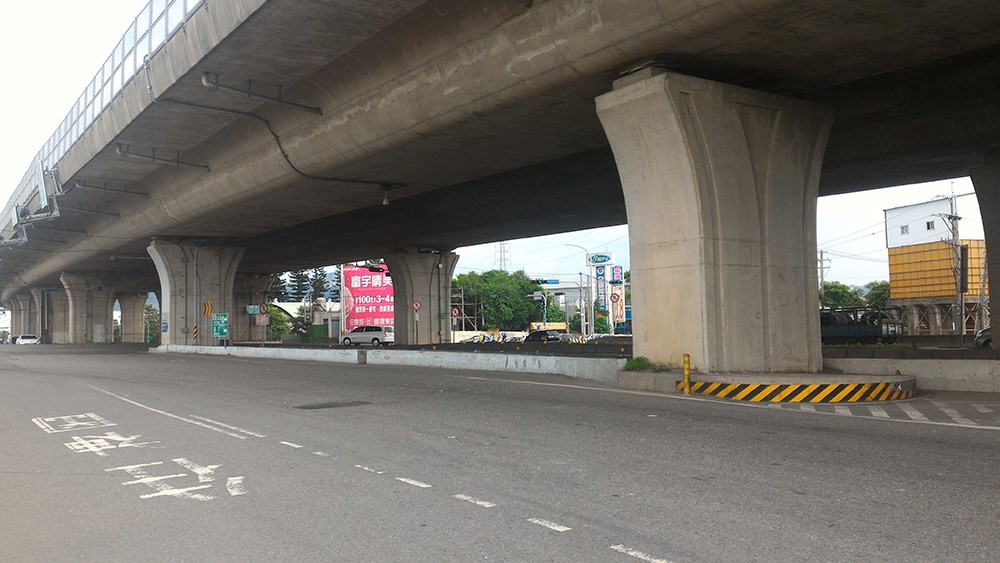

The M41 mark 921 Jiji earthquake has caused considerable loss of life and property in central Taiwan. For the bridge structures that have been completed and opened to traffic in the central section of the National Highway, the Ministry of Communications has strengthened the bridge with the latest seismic design specifications. Project scope: National Highway 4 Fengyuan Viaduct 9K+819~16K+545 (A1~P174), the construction scope is about 6.7 kilometers in length. It needs to be reinforced with foundation reinforcement and upper structure anti-drop device reinforcement. There are 222 foundation reinforcements and additional 2 anti-shock concrete blocks, 318 sets of steel plate anti-shock devices, 10 sets of anti-falling devices, and 10 sets of anti-vibration braces. Expected goal: To make the National Highway bridges meet the latest bridge seismic standards and achieve the goal of sustainable development of the country's overall disaster prevention, and to minimize the damage in the event of a major earthquake.
